The Death of the Camera Bump: How Metasurface Flat Lenses Are Rewriting Foldable Physics

By Rizowan Ahmed (@riz1raj)
Senior Technology Analyst | Covering Enterprise IT, Hardware & Emerging Trends

The End of the Glass Stack

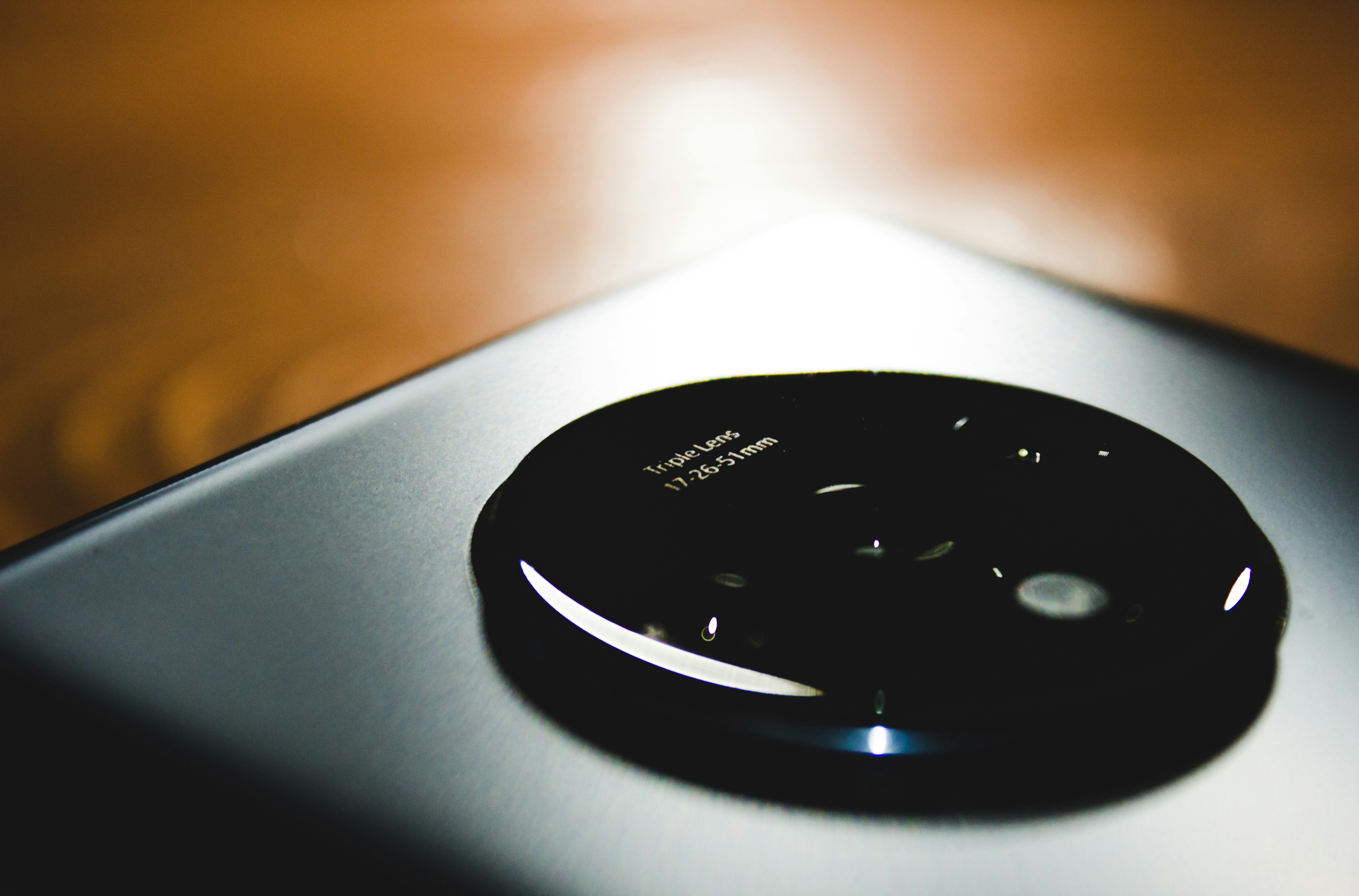

For a decade, the smartphone industry has utilized stacked curved plastic and glass elements. The result is the 'camera bump,' which affects the stability of mobile devices on flat surfaces. The refractive stack is approaching physical limitations regarding thickness and thermal performance. The potential solution involves the use of metasurface flat lenses.

The Physics of the Sub-Wavelength Shift

Traditional lenses rely on bulk material thickness to manipulate the phase of light. By contrast, metasurfaces utilize arrays of sub-wavelength nanostructures—often termed 'meta-atoms'—to control the wavefront of incident light at a local level. By varying the geometry, orientation, and spacing of these nanostructures, it is possible to achieve focusing without the curvature required by legacy optics.

Why Foldables Demand Metasurfaces

Foldable devices are constrained by the 'Z-height' of the chassis. When a device is folded, camera module thickness impacts the device's total folded footprint. Computational Metasurface Lens Integration is being researched as a path to maintaining image quality while reducing module thickness.

• Phase Control: Precise manipulation of the phase profile allows for the correction of chromatic aberration.
• Flat Form Factor: Metasurfaces can be fabricated on thin glass or polymer substrates, potentially reducing the optical stack height.
• Thermal Stability: Dielectric metasurfaces exhibit different thermal characteristics compared to traditional plastic lenses.

Computational Photography as the Engine

A metasurface lens requires significant signal processing. Because these lenses are often monochromatic, they rely on computational reconstruction algorithms. By leveraging the NPU (Neural Processing Unit) throughput of modern SoCs, manufacturers can perform deconvolution to resolve color and depth.

The Technical Constraints

While the footprint reduction is a goal, the integration process faces engineering hurdles:

• Fabrication Precision: Manufacturing nanostructures at the 20nm-50nm scale requires deep-UV lithography or nanoimprint lithography, which currently present cost and scalability challenges.
• Efficiency Losses: Diffraction efficiency in metasurfaces remains a challenge, particularly in the blue spectrum, often requiring multi-layer metasurfaces to maintain signal-to-noise ratios.
• Algorithm Latency: Moving from hardware-based refractive correction to software-based deconvolution introduces latency that must be managed to prevent shutter lag.

The Outlook

The industry is exploring hybrid systems—where metasurfaces act as thin-film correctors for traditional lenses—before moving toward pure metasurface-based primary sensors. We are witnessing a transition from 'lens design' as a mechanical discipline to 'wavefront engineering' as a software-driven process. The companies that master the synergy between the nanostructure foundry and the NPU pipeline will likely influence the next generation of industrial design.

---
